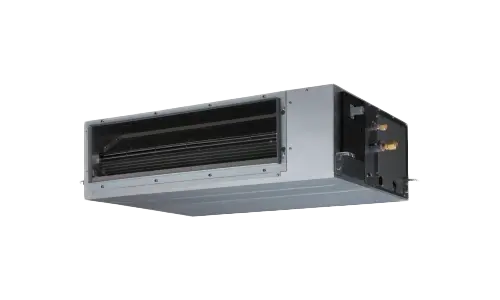

AIRSTAGE SINGLE-ROOM MINI-SPLIT SYSTEMS Medium Static Pressure Duct
Model
 12,000 BTU/h 16,000 BTU/h
|
12LUAS1R |
|---|---|
|
18,000 BTU/h21,000 BTU/h
|
ARU18RGLX |
|
24,000 BTU/h27,000 BTU/h
|
ARU24RGLX |
|
30,000 BTU/h32,000 BTU/h
|
ARU30RGLX |
|
36,000 BTU/h36,000 BTU/h
|
ARU36RGLX |
|
42,000 BTU/h47,000 BTU/h
|
ARU42RGLX |
|
48,000 BTU/h53,000 BTU/h
|
ARU48RGLX |
|
12,000 BTU/h16,000 BTU/h
|
ARU12RGLX (Retired) |
Features

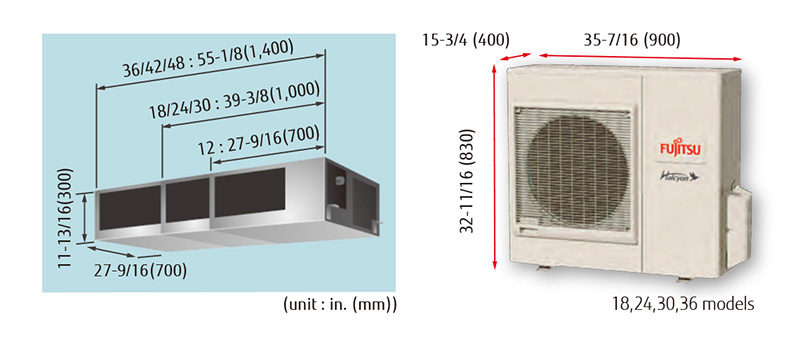

Slim & Compact design indoor unit & outdoor unit
New ducted air conditioners are slim and compact in design in order to fit into most ceiling spaces, making it ideal for installation to be discreet. The compact outdoor units allow to be installed below a window and in a narrow space.
Improved Static Pressure
Stronger static pressures mean these units can accept more ductwork Up to 0.80” WG (200 Pa) for 12k, 18k, 24k, 30k, 36k systems Up to 0.72” WG (180 Pa) for 42k & 48k systems
Automatic Airflow adjustment function
This unique and innovative function detects required air flow in each application case and automatically adjust the volume.
High Efficiency & Quiet operation
The combination of the V-shaped heat exchanger,air stabilizer, and the high efficient DC fan motor allowed high efficiency and quiet operation.
