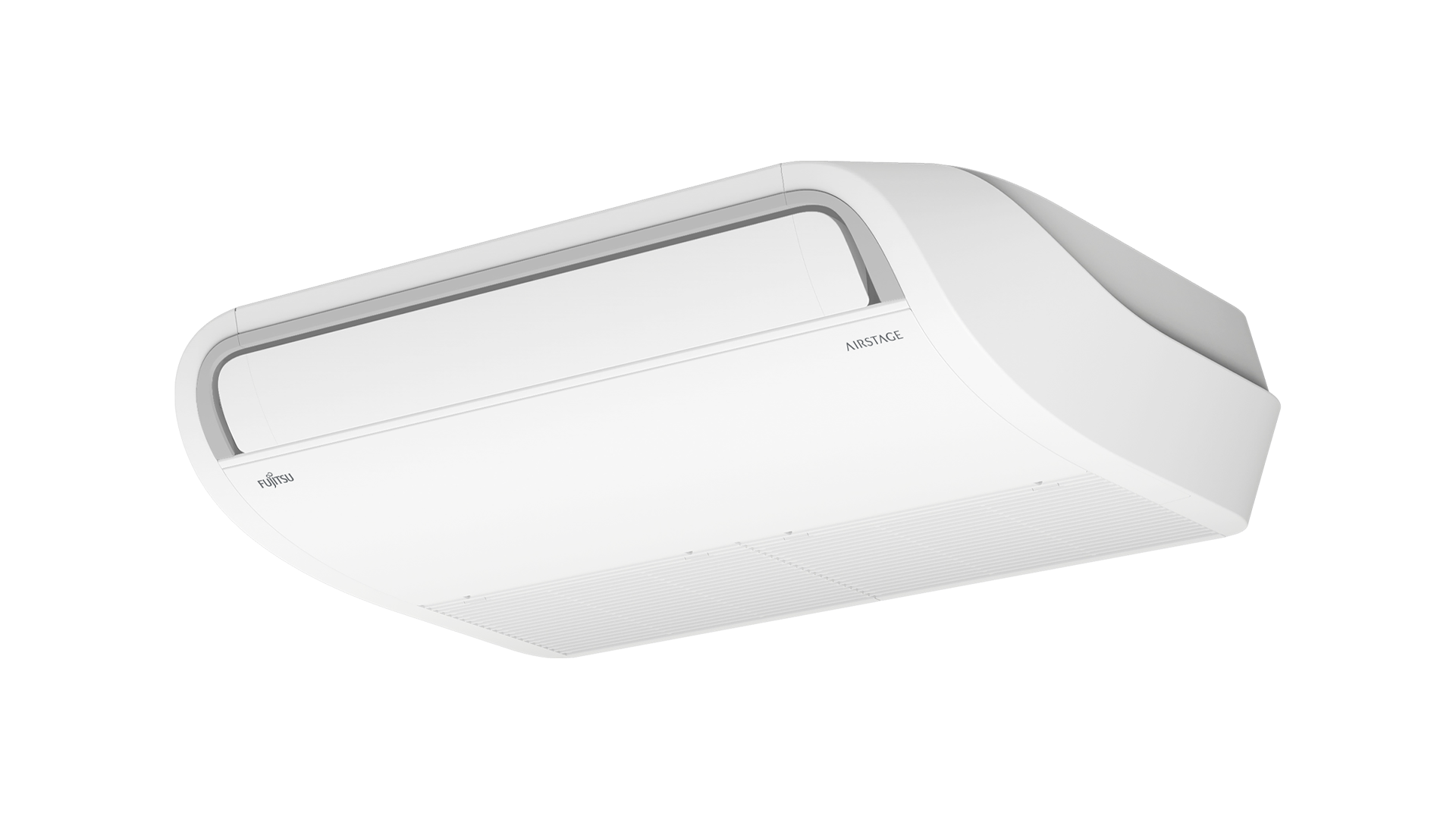

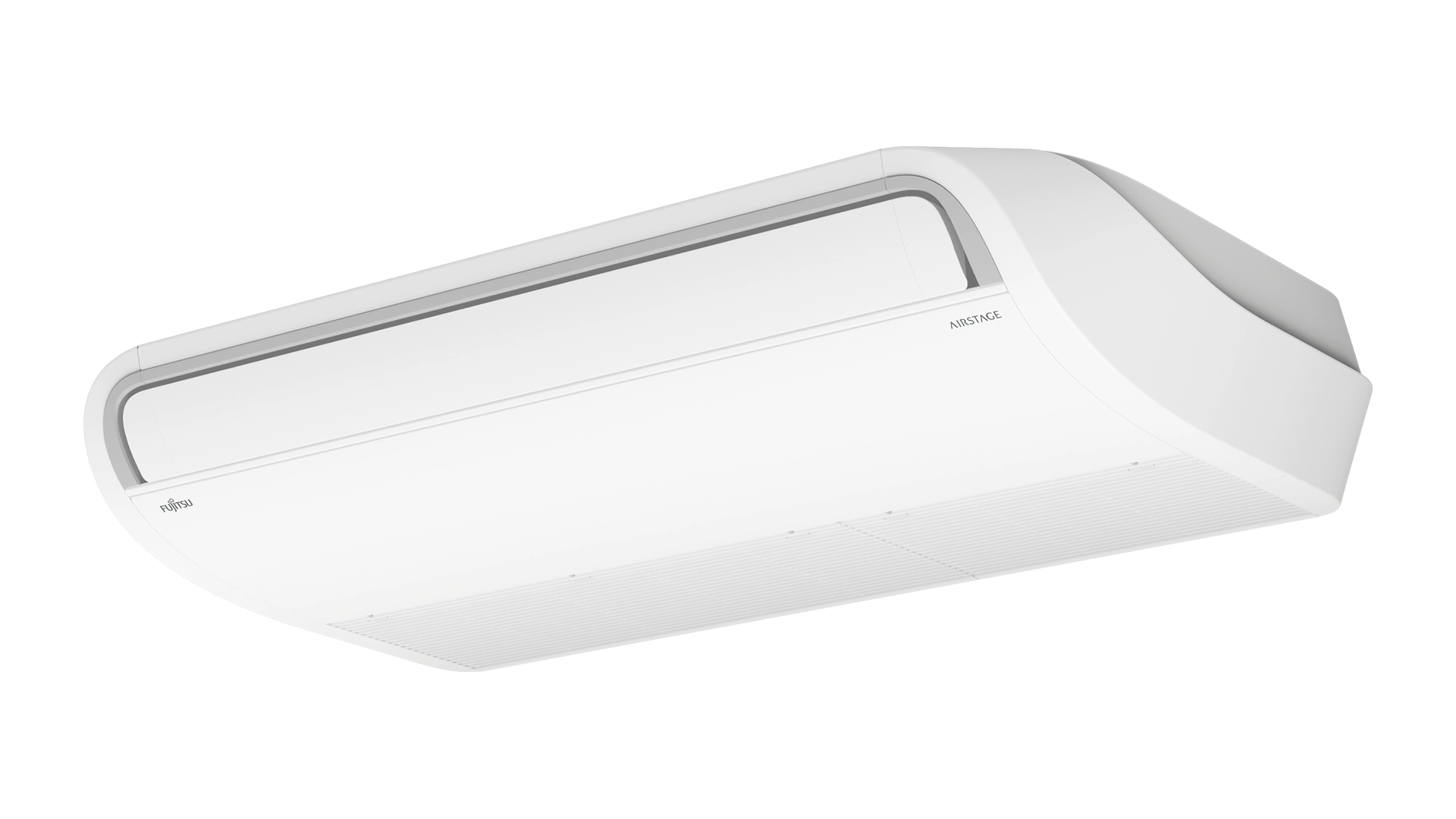

AIRSTAGE SINGLE ROOM MINI-SPLIT SYSTEM Ceiling Suspended Systems

  • Economy Mode
  • Minimum Heat Mode
  • Auto Changeover
  • Automatic air flow adjustment
  • Auto Louver: 4 Way
  • Auto Restart/Reset
  • Dry Mode
  • Fresh Air Intake
  • Outdoor Unit Low Noise
  • Quiet Mode (Indoor Unit)
  • 24 Hour Timer
  • Sleep Timer
  • Weekly Timer
  • Cold Prevention
  • High Ceiling Mode
  • Pump Down Operation
  • Remote Temperature Sensor
  • Third Party Device Control
  • Low Ambient Cooling
  • Low Ambient Cooling
  • Blue Fin Heat Exchanger
  • Daisy Chain
  • Long Piping Length
KUAS1B & KUAH1B
XLTH R32

Experience a new level of comfort and efficiency with the feature-rich AIRSTAGE Centauri & Centauri XLTH Series ceiling suspended systems, now paired with Extra Low Temperature Heating Outdoor Units for reliable performance in cold-climate applications. The innovative ceiling suspended design, combined with advanced fan technology, delivers superior capacity and whisper-quiet operation year-round. Compact outdoor unit footprints, extended line set lengths, and robust low-ambient heating capability provide outstanding installation flexibility—making it easier than ever to deliver dependable comfort, even when outdoor temperatures drop.

Size (kBTU/h): 18, 24, 30, 36

Features

Ducted Technology

AIRSTAGE mini-splits are easy to install, require little or no ducting, and can provide comfort for any room or the entire home.

Year-Round Comfort

AIRSTAGE systems offer both heating and cooling to keep you comfortable year-round.

Energy Efficient

Save up to 30% on energy bills with AIRSTAGE H-Series systems. Take advantage of local rebates and save even more.

No Temperature Lockout! (XLTH Only)

Heating down to -15°F (-26°C) without sacrificing heating capacity at low outdoor temperatures

Specifications

  • Sound Level: As low as 29dB
  • SEER2: As low as 20.8 BTU/hW
  • HSPF2: As low as 8.1 BTU/hW
  • Energy Star: Yes (On select models)
  • Cooling Operating Range:
    -5°F to 122°F (-21°C to 50°C)
  • Heating Operation Range:
    -15°F to 75°F (-26°C to 24°C) XLTH
    -5°F to 75°F (-21°C to 24°C) Standard

Warranty

7 Year Compressor, 5 Year Parts out-of-the-box Warranty.

10 Year Compressor, 10 Year Parts Warranty when registered within 60 days of installation in a residence.

12 Year Compressor, 12 Year Parts Warranty when registered within 60 days of installation in a residence and installed by a Fujitsu Elite contractor.

Read more about our warranty statements

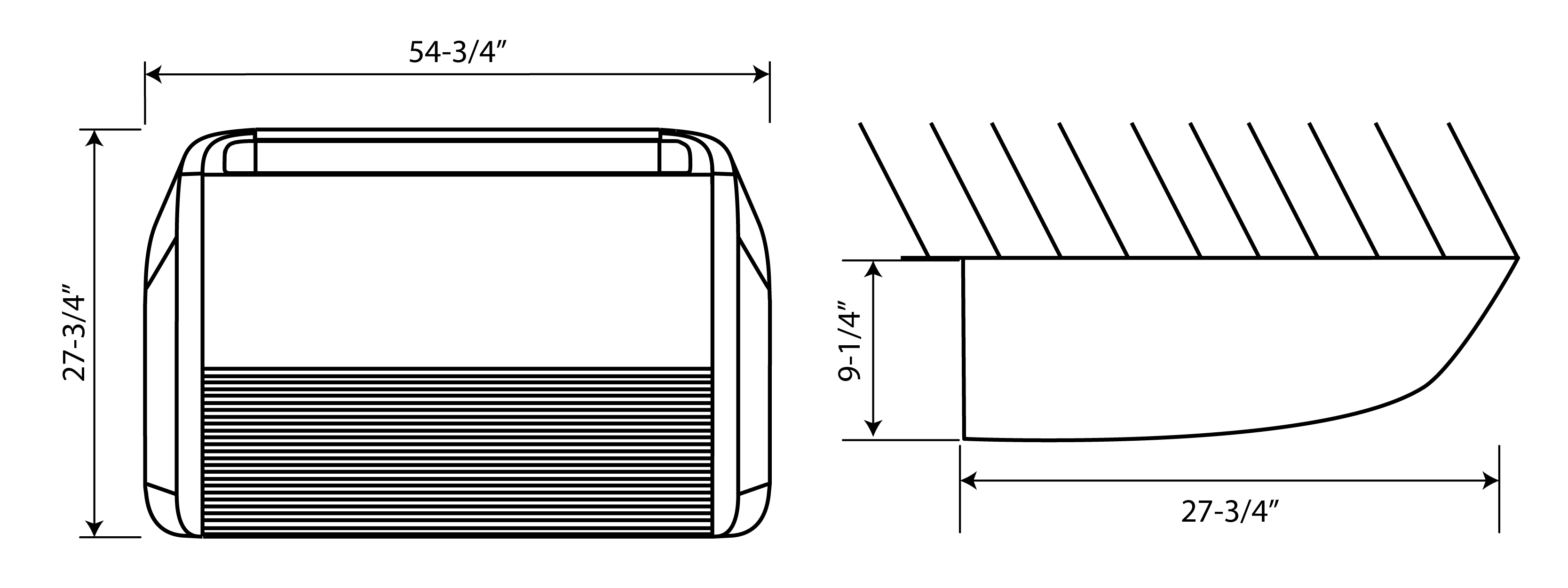

Dimensions

18,000 BTU/h

24,000 BTU/h

30,000 BTU/h

36,000 BTU/h

Optional Accessories

KAGAMI
Touch Panel Wired Controller
(UTY-RVRU)

IR Receiver Kit
w/ Wireless Remote Controller
(UTY-LBTUH)

Wi-Fi Adapter
(WiFi Interface Module USB Type)

Intesis IR Wireless AC
Cloud Control Interface (Intesis Home app)

*
