AIRSTAGE SINGLE ROOM MINI-SPLIT SYSTEM Circular Flow Cassette

  • Economy Mode
  • ESP
  • Minimum Heat Mode
  • Auto Changeover
  • Automatic air flow adjustment
  • Auto Louver Up Down
  • Auto Restart/Reset
  • Dry Mode
  • Fresh Air Intake
  • Outdoor Unit Low Noise
  • Quiet Mode (Indoor Unit)
  • 24 Hour Timer
  • Sleep Timer
  • Weekly Timer
  • Cold Prevention
  • High Ceiling Mode
  • pump Down Operation
  • Remote Temperature Sensor
  • Third Party Device Control
  • 0-Degree Ambient Cooling
  • Low Ambient Cooling
  • Branch Duct Capable
  • Hydro Fin Coating
  • Daisy Chain
  • Long Piping Length
  • Slender Fit
KUAS1U & KUAH1U
XLTH R32

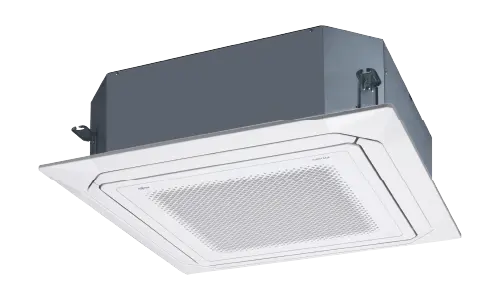

Introducing the AIRSTAGE Centauri & Centauri XLTH Series Large Circular Flow Cassette System—engineered for exceptional comfort, coverage, and cold-weather confidence with Extra Low Temperature Heating Outdoor Units. Featuring innovative 360-degree airflow with independently controlled louvers, these systems deliver powerful, even air distribution to every corner of the space. The sleek, modern cassette design integrates seamlessly into the ceiling, providing high-performance heating and cooling with dependable operation in low outdoor temperatures—where comfort cannot be compromised.

Size (kBTU/h): 18, 24, 30, 36, 42, 48

Features

Ducted Technology

AIRSTAGE mini-splits are easy to install, require little or no ducting, and can provide comfort for any room or the entire home.

Year-Round Comfort

AIRSTAGE systems offer both heating and cooling to keep you comfortable year-round.

Energy Efficient

Save up to 30% on energy bills with AIRSTAGE H-Series systems. Take advantage of local rebates and save even more.

No Temperature Lockout! (XLTH Only)

Heating down to -15°F (-26°C) without sacrificing heating capacity at low outdoor temperatures

Specifications

  • Sound Level: As low as 28dB
  • SEER2: As high as 26.3 BTU/hW
  • HSPF2: As high as 11.4 BTU/hW
  • Energy Star: Yes (on select models)
  • Cooling Operating Range:
    -5°F to 122°F (-21°C to 50°C)
  • Heating Operation Range:
    -15°F to 75°F (-26°C to 24°C) XLTH
    -5°F to 75°F (-21°C to 24°C) Standard

Warranty

7 Year Compressor, 5 Year Parts out-of-the-box Warranty.

10 Year Compressor, 10 Year Parts Warranty when registered within 60 days of installation in a residence.

12 Year Compressor, 12 Year Parts Warranty when registered within 60 days of installation in a residence and installed by a Fujitsu Elite contractor.

Read more about our warranty statements

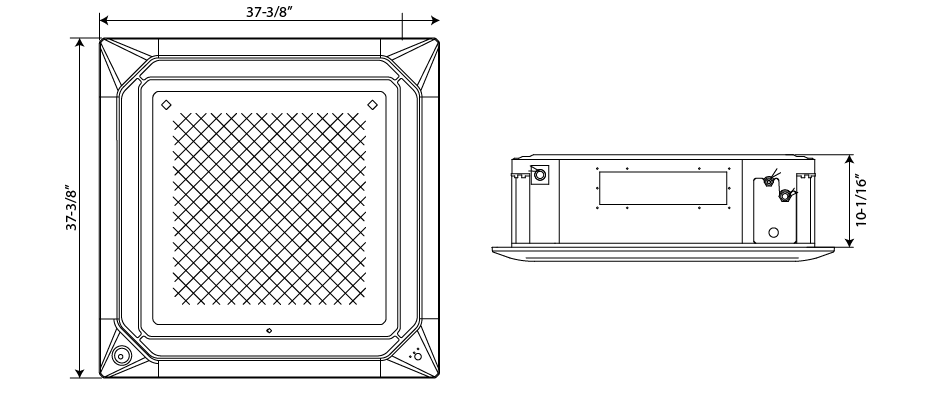

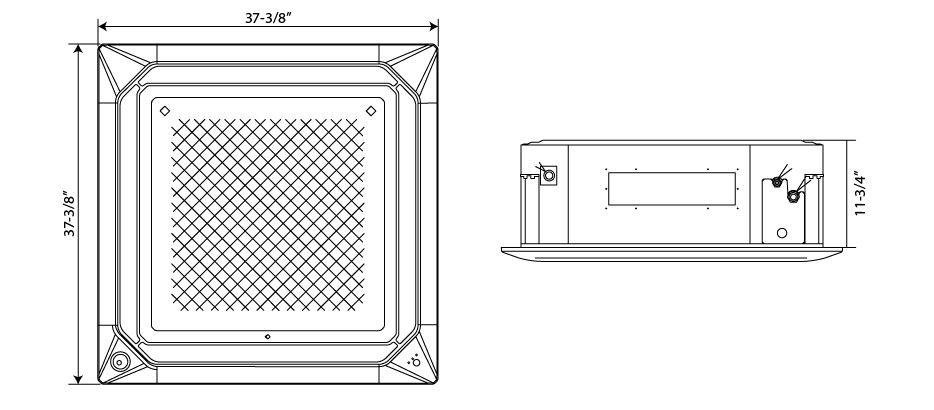

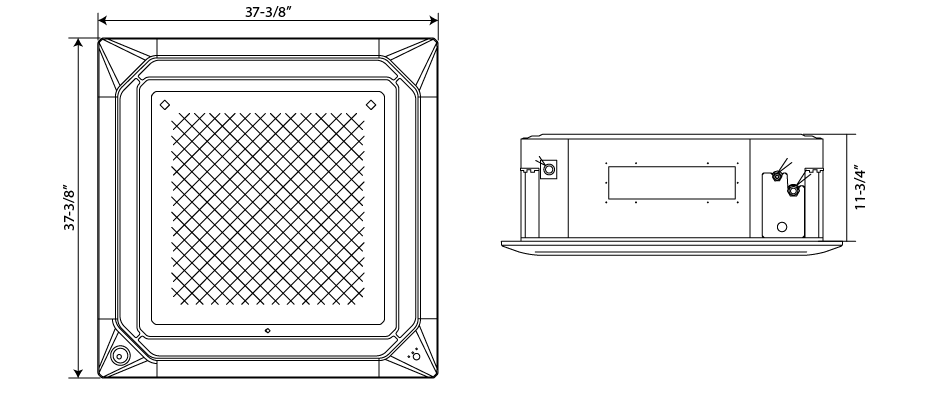

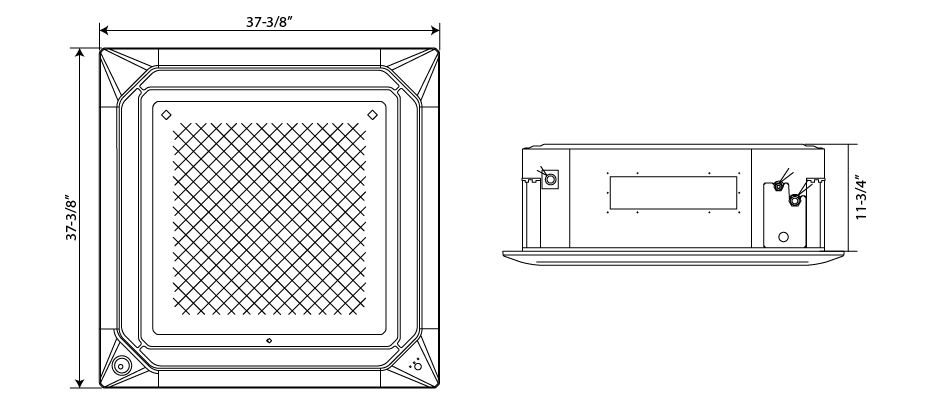

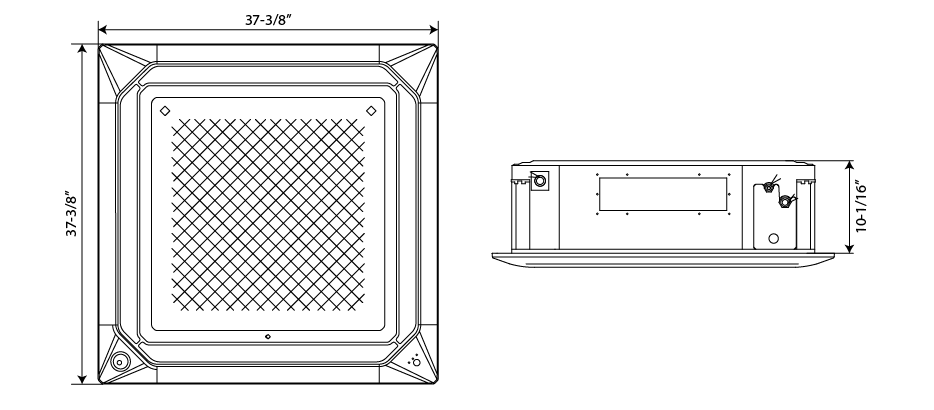

Dimensions

18,000 BTU/h

24,000 BTU/h

30,000 BTU/h

36,000 BTU/h

42,000 BTU/h

48,000 BTU/h

Optional Accessories

KAGAMI
Touch Panel Wired Controller
(UTY-RVRU)

IR Receiver Kit
w/ Wireless Remote Controller
(UTY-LBTUC)

Wi-Fi Adapter
(WiFi Interface Module USB Type)

Intesis IR Wireless AC
Cloud Control Interface (Intesis Home app)

*
