AIRSTAGE SINGLE-ROOM MINI-SPLIT SYSTEMS Ceiling Suspended

AIRSTAGE
Indoor Unit Systems: 18RULX, 24RULX

Model

Cooling18,000 BTU/h
Heating21,600 BTU/h 		18LUAS1B
Cooling24,200 BTU/h
Heating27,000 BTU/h 		24LUAS1B
Cooling30,000 BTU/h
Heating32,000 BTU/h 		30LUAS1B
Cooling36,000 BTU/h
Heating38,000 BTU/h 		36LUAS1B

Features

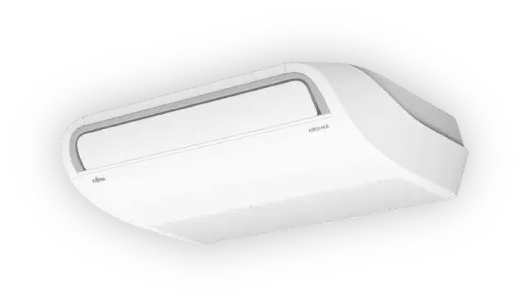

Ceiling suspended 18-36LUAS1B units are the perfect solution for those looking for an efficient and stylish way to control the temperature in their space. These models are designed to be installed on the ceiling, providing optimal air circulation, and satisfying your heating or cooling needs. The sleek and modern design of these models blend seamlessly into any decor, making it a stylish addition to any room with high ceilings up to 14 ft. The ceiling suspended models offer a range of features to ensure maximum comfort, including adjustable airflow and temperature settings, programmable timers, and energy-saving modes. With its quiet operation, you’ll hardly even notice it’s there.

Other Standard Features Include:

Economy Mode:Thermostat setting automatically changes according to the temperature to avoid unnecessary cooling and heating.
Economy Mode
Minimum Heat Mode: Sets room temperature to 50°F, keeping temperatures above freezing and reducing power consumption.
Minimum Heat Mode
Auto Changeover (heating to cooling or vice-versa): Automatically alternates between heating or cooling if the room temperature falls 4 ̊F below the set temperature when cooling or rises 4 ̊F above set temperature when heating.*
Auto Changeover (heating to cooling or vice-versa)
Auto restart: In the event of a temporary power failure, the air conditioner will automatically restart in the same operating mode as before, once the power supply is restored.
Auto Changeover
Auto Louver: 4 Way: Redirects airflow automatically with up/down and left/right motion.
Auto Louver: 4 Way
Auto Restart: Following a power failure, systems will automatically restart in the same operating mode as before, once power has been restored.
Auto Restart
Dry Mode: Can operate in cooling mode even when outdoor ambient is 0°F, 14°F or 32°F, depending on model, without modification. Operation outside of factory specification is not recommended.
Dry Mode
Fresh Air Intake: Outside air can be introduced by attaching field supplied flexible duct to fresh air knockouts.
Fresh Air Intake
Outdoor Unit Low Noise: Limits compressor and fan speed during high speed operation for a 3 dB noise reduction.
Outdoor Unit Low Noise
Quiet Mode: An extra quiet fan speed to make sure you are not disturbed.
Quiet Mode
24 Hour Timer:Allows for one on/off cycle during a 24 hour period.
24 Hour Timer
Sleep Timer:Automatically adjusts the temperature while you sleep to make you more comfortable.
Sleep Timer
Weekly Timer:Allows you to set on/off time twice a day and a different on/off time by day.
Weekly Timer
Cold Prevention:Indoor coil will warm prior to fan operating, preventing cold air during heating mode.
Cold Prevention
High Ceiling Mode:Temperature at the top of a high ceiling room may be warmer than the space occupied; this mode adjusts for this difference.
High Ceiling Mode
Pump Down Operation:Collects all refrigerant in system back into the outdoor unit when the unit is to be moved or before servicing the refrigerant circuit.
Pump Down Operation
Remote Temperature Sensor:Room temperature sensor is located in optional wired remote controller only.
Remote Temperature Sensor
Third Party Control:Turns system on or off using a normally closed circuit. Interface with third party devices such as home automation.
Third Party Control
Low Ambient Cooling:Can operate in cooling mode even when outdoor ambient is 0°F, 14°F or 32°F, depending on model, without modification. Operation outside of factory specification is not recommended.
Low Ambient Cooling
-5°F Low Ambient Cooling
-5°F Low Ambient Cooling
Blue Fin Coating:Blue fin treatment to the outdoor unit’s heat exchanger improves corrosion resistance
Blue Fin Coating
Daisy Chain:Ability to connect up to 16 identical style indoor units to one wired remote.
Daisy Chain
Long Piping Length
Long Piping Length

Optional Accessories

Kagami Wired Design Controller UTY-RVRU
Wired Remote Controller UTY-RNRUZ Series
Simple Remote Controller UTY-RSRY / UTY-RHRY
IR Receiver Kit & Remote UTY-LBTUH
Wi-Fi Interface Module UTY-TFSXJ4
24V Thermostat Interface UTY-TTRXZ1
External Switch Controller UTY-TERX
BACnet Gateway FJ-AC-485-1
Modbus Converter UTY-VMSX
External Input and Output PCB UTY-XCSX + UTZ-GXEA
External Connect Kit UTY-XWZXZG
Drain Pump Unit UTZ-PU1EBB
